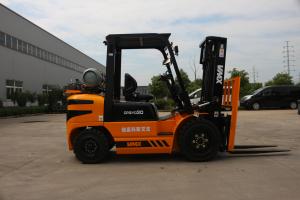

Manual Automatic LPG Forklift Truck With IMPCO 2500kgs Loading Capacity

Name: Manual Automatic LPG Forklift Truck With IMPCO 2500kgs Loading Capacity
Brand: VMAX
Price: 1 USD

Brand Name : VMAX

Model Number : CPQYD25

Certification : CE,SGS,BV

Place of Origin : ANHUI,CHINA

MOQ : 1UNIT

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000unit / year

Delivery Time : 45 DAYS

Packaging Details : bubble wrap

Price : Negotiable

Type : Lp Gas Forklift

Power Source : LP Gas Engine

Rated Loading Capacity : 2500KG

Max. Lifting Height : 3000mm

Min. Lifting Height : 85mm-100mm

load center : 500mm

Contact Now

Manual Automatic LPG Forklift Truck With IMPCO 2500kgs Loading Capacity

Lp Gas Forklift Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPQYD25

Type:Powered Pallet Truck

Power Souce:LP Gas Engine

Rated Loading Capacity:2500KG

Max. Lifting Height:3000mm

Min. Lifting Height:85mm-100mm

Fork Length:1070mm

Fork Width:125mm

Overall Dimensions:2580*1160mm

Certification:CE

After-sales Service Provided:Engineers available to service machinery overseas

color:nacarat

load center:500mm

Lp Gas Forklift Packaging & Shipping

A: Date of delivery: 15-25days after received the deposit
B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: One year or 2000hours upon receiving goods.

Model			CPQYD25
Load capacity		kg	2500
Load center		mm	500
Power type			Gasoline/LPG/CNG
Max. lifting speeds		mm/s	400
Max. Driving speeds		km/h	17/19
Max. Towing		KN	15/10
Grade ability		%	15/20
H1 Lifting height		mm	3000
Free lift		mm	60
Tilting angles			6/12
Min.turning radius		mm	2450
Min.right angle aisle width		mm	2050
Min.under-clearance		mm	110
Dimensions	A Overall length(including fork)	mm	3605
	B Overall width	mm	1160
	H Overall height(mast lowered)	mm	2095
	H2 Overall height(mast extend)	mm	4080
Tyre	Front tyre		7.00-12
	Rear tyre		6.00-9
Total weight		kg	3600
Engine	Engine model		Chinese GQ-4Y/Nissan K21/K25
	Rate Power	kw	37/36
	Rotate Speed At Rate power	ram	2650/2400
	Max. torque	Nu	≥148
	Rotate speed at max torque	ram	1800-1900

Our Services

As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
